Hyundai Ioniq (AE): Timing System / Crankshaft Damper Pulley. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Timing System / Crankshaft Damper Pulley. Components and components location

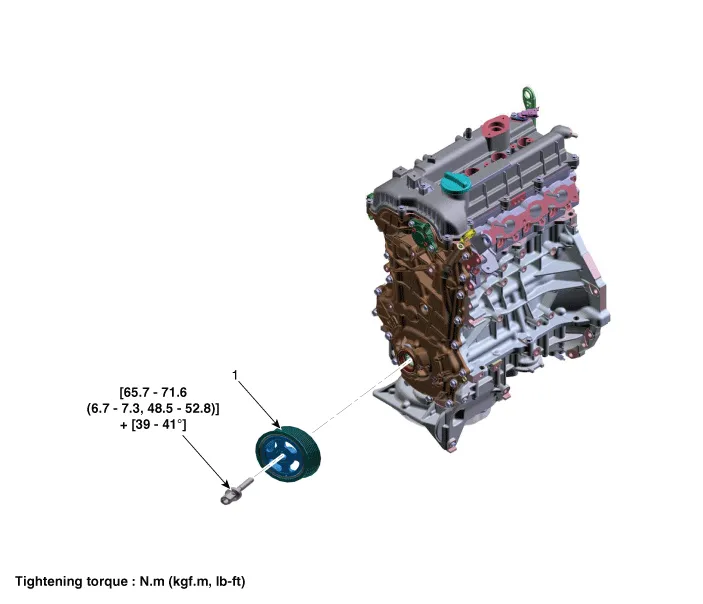

Components

1. Crankshaft damper pulley

❮Drive Belt Tensioner. Repair procedures

Removal and Installation1.Remove the drive belt.(Refer to Timing System - "Drive Belt")2.Remove the mechanical tensioner (A). Tightening torque : 18.

Crankshaft Damper Pulley. Repair procedures❯

Removal and Installation1.Remove the passenger seat RH front tire.(Refer to Suspension System - "Wheel")2. Remove the engine room under cover.(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")3.
