Hyundai Ioniq (AE): Crash Pad / Crash Pad Under Cover. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Under Cover. Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

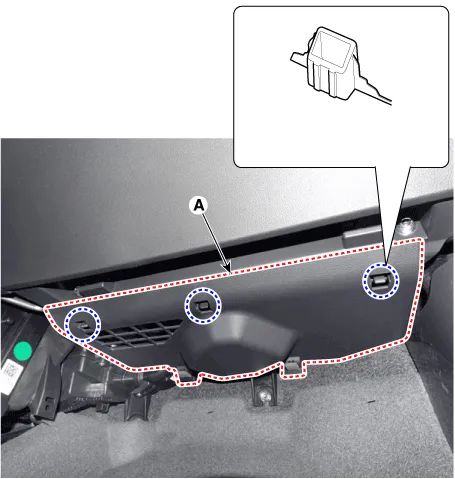

1.	Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin-type retainers).

❮Crash Pad Side Cover. Repair procedures

Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Glove Box. Components and components location❯

Component Location 1. Glove box
