Hyundai Ioniq (AE): Crash Pad / Crash Pad Side Cover. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover. Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Using a remover and remove the crash pad side cover (A).

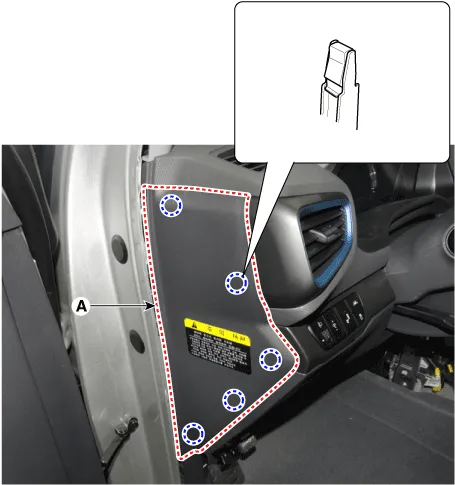

[LH]

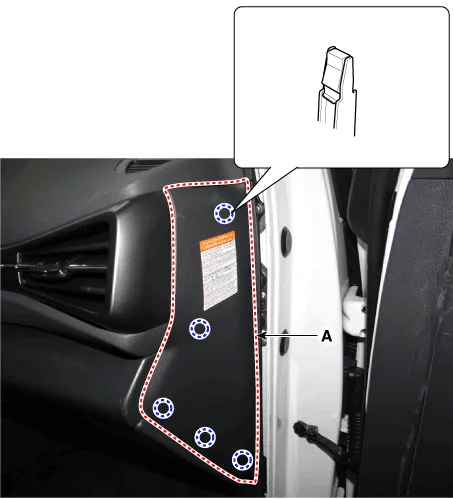

[RH]

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location [LH]1. Crash pad side cover [LH][RH]1. Crash pad side cover [RH]

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
