Hyundai Ioniq (AE): Crash Pad / Crash Pad Side Cover. Components and components location
| Component Location |
| [LH] |
| 1. Crash pad side cover [LH] |

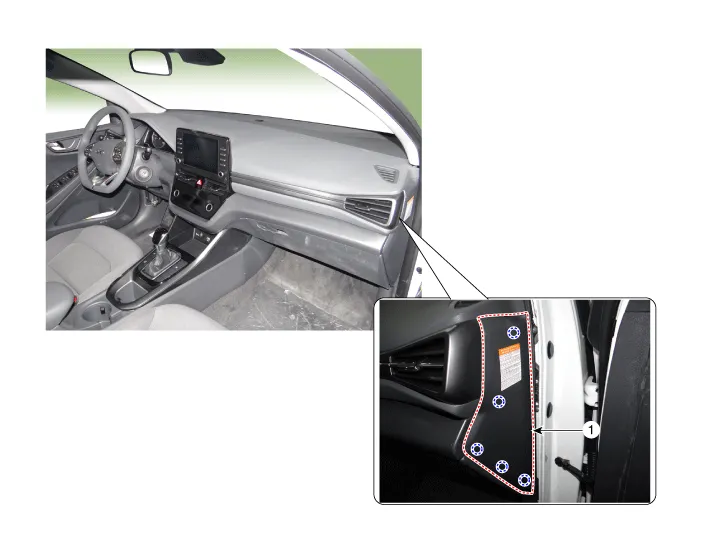

| [RH] |
| 1. Crash pad side cover [RH] |
Replacement[Steering column shroud upper panel] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
