Hyundai Ioniq (AE): Dual Clutch Transmission Assembly / DCT (Dual Clutch Transmission). Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / DCT(Dual Clutch Transmission) System / Dual Clutch Transmission Assembly / DCT (Dual Clutch Transmission). Components and components location

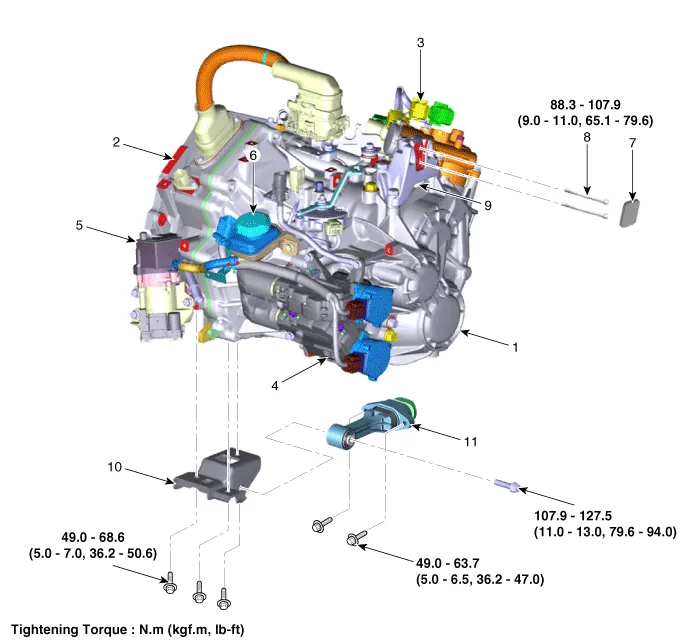

Components (1)

1. Dual clutch transmission assembly
2. Hybrid motor assembly
3. Gear actuator
4. Clutch actuator
5. Engine clutch actuator
6. Reserver
7. Dust cover
8. Support bracket mounting bolt
9. DCT (Dual Clutch Transmission) support bracket
10. Roll rod support bracket
11. Roll rod barcket

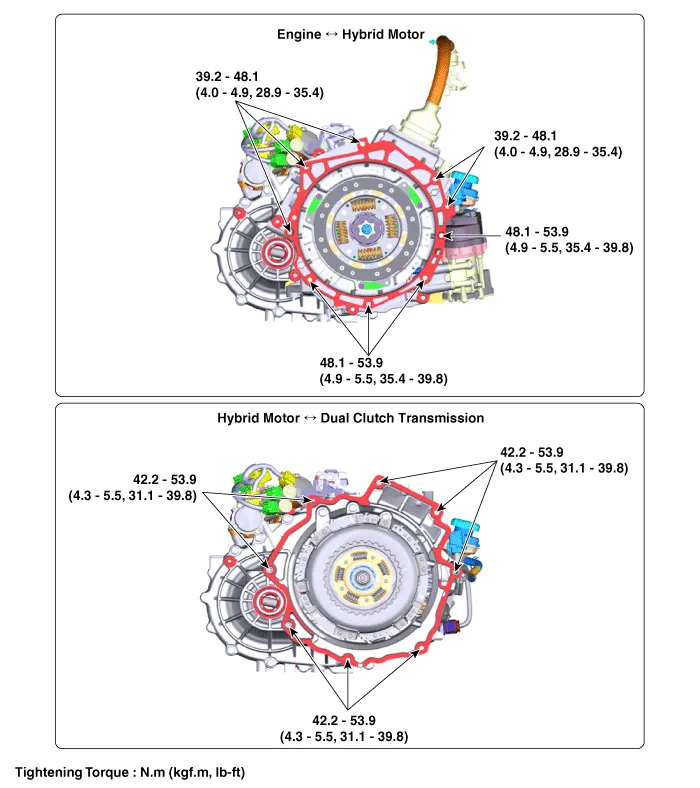

Components (2)

    Removal    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
