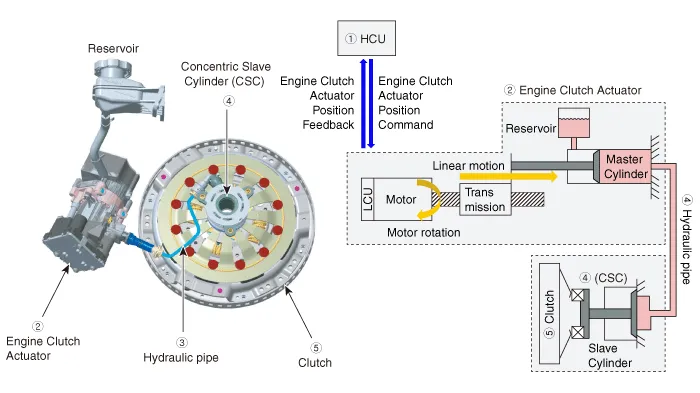

Hyundai Ioniq (AE): Engine Clutch System / Description and operation
| Description |
High Voltage Shut-off Procedures • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
Specifications [Clutch Cover and Disc] Items Specifications Clutch operation methodHydraulic motor typeClutch coverTypeDiaphragm spring strapClutch discTypeSingle dry with diaphragmFaling diameter (Outer × inner)Ø225 × Ø175mm (Ø8.
