| Description |
The Dual Clutch Transmission (DCT) control system measures required data to identify the state of the control target and computes the appropriate compensation value if adjustment is necessary. The actuator is controlled according to the computed compensation value to obtain desired output.
If transmission or driving-performance-related failure is detected, first perform self-diagnosis and basic transmission inspection (oil check).
Then use the diagnostic tool to inspect the transmission control system components.

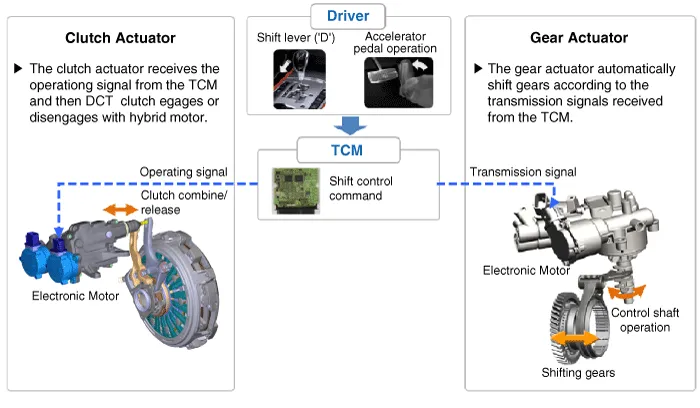

| Operation principle |

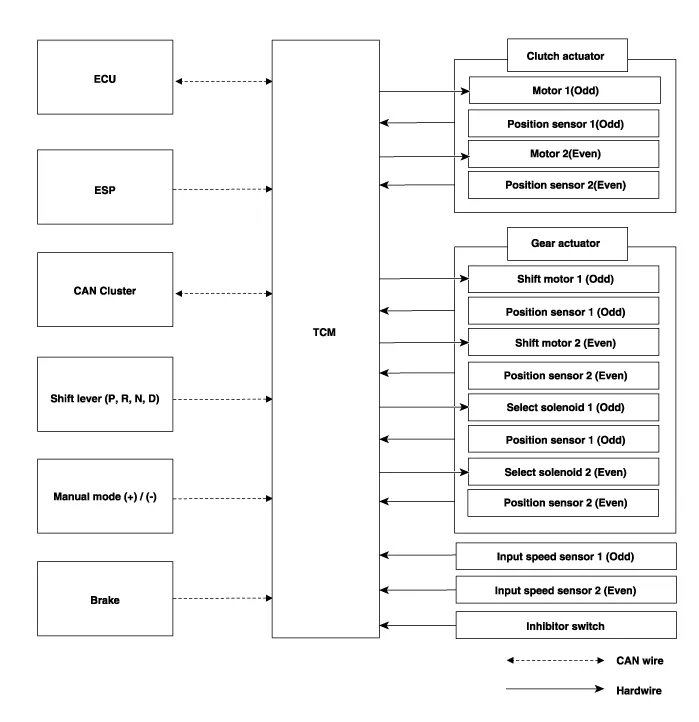

| Control System Logic |
Components1. Dual Clutch Transmission (DCT) Assembly2. Hybrid Motor Assembly3. Shift Lever4. DCT Control Module (TCM)
