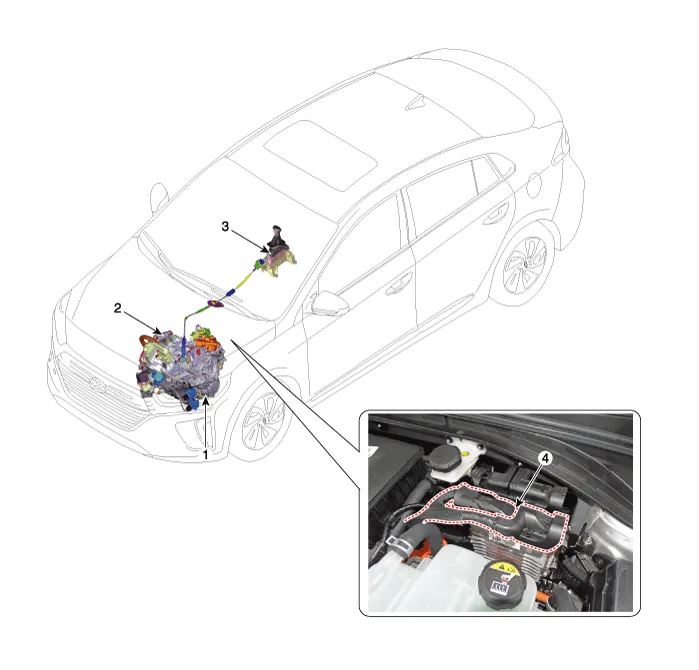

Components

1. Dual Clutch Transmission (DCT) Assembly
2. Hybrid Motor Assembly

3. Shift Lever
4. DCT Control Module (TCM)

❮Description and operation

DescriptionThe Dual Clutch Transmission (DCT) control system measures required data to identify the state of the control target and computes the appropriate compensation value if adjustment is necessary.

DCT Control Module (TCM). Description and operation❯

Description• Function The Transmission Control Module (TCM) is like the brain for the Dual Clutch Transmission (DCT).
