Hyundai Ioniq (AE): Hybrid Motor Cooling System / Electric Water Pump(EWP). Components and components location

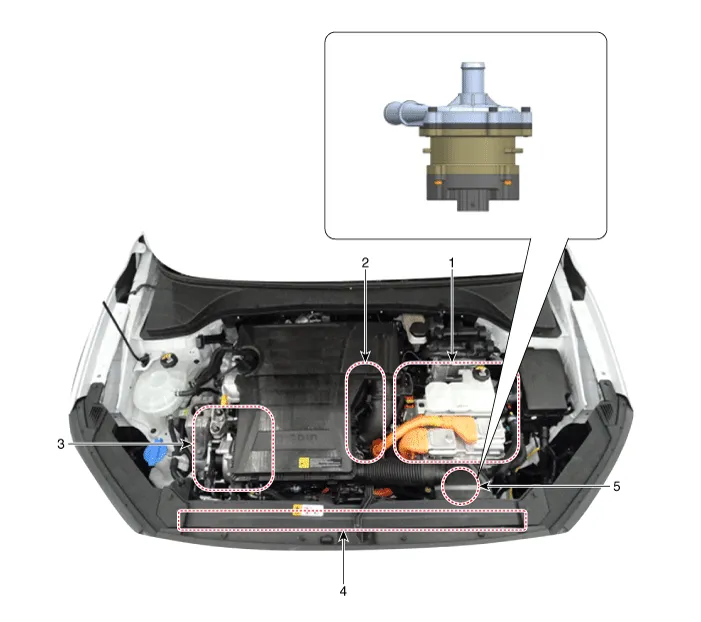

| Component location |
| 1. HPCU (Hybrid Power Control Unit) (LDC+MCU+HCU+Reservoir) 2. Hybrid drive motor | 3. Hybrid starter generator (HSG) 4. Electrical radiator 5. Electric water pump (EWP) |
Description• Function : It circulates the coolant for the hybrid system (HPCU, drive motor, and HSG).• Operating Principles: When the coolant temperature exceeds the limit set in the MCU in the hybrid system, the motor control unit (MCU) sends a command to the electric water pump (EWP) through the CAN communication to operate the EWP.
Removal1.Remove the 12 V battery (-) cable.2.Remove the undercover.(Refer to Engine Mechanical System - "Engine Room Undercover".)3.Drain the coolant from the hybrid cooling system.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Ambient Temperature Sensor. Description and operation
DescriptionThe ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.The sensor output will be used for discharge temperature control, temperature regulation door contrl, blower m
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Rear Corner Radar Unit. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the rear bumper.(Refer to Body - "Rear Bumper")3.Remove the rear corner radar unit (A) after loosening the mounting nuts. • Take care not to separate the bracket from rear bumper when removing the rear corner radar sensor.
