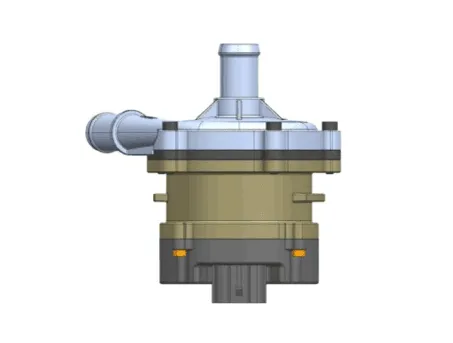

Hyundai Ioniq (AE): Hybrid Motor Cooling System / Electric Water Pump(EWP). Description and operation
| Description |
| • | Function : It circulates the coolant for the hybrid system (HPCU, drive motor, and HSG). |
| • | Operating Principles: When the coolant temperature exceeds the limit set in the MCU in the hybrid system, the motor control unit (MCU) sends a command to the electric water pump (EWP) through the CAN communication to operate the EWP. EWP then sends its operation status to MCU through the CAN communication.
|
Specifications Cooling system CoolantSpecified coolant LLC - 10 Quantity Approx. 3.2L (0.85 US gal, 3.38 US qt, 2.82 lmp qt.)
Component location1. HPCU (Hybrid Power Control Unit)(LDC+MCU+HCU+Reservoir)2. Hybrid drive motor3. Hybrid starter generator (HSG)4. Electrical radiator5.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Ambient Temperature Sensor. Description and operation
DescriptionThe ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.The sensor output will be used for discharge temperature control, temperature regulation door contrl, blower m
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Front Radar Unit. Description and operation
DescriptionThe smart cruise control unit is installed on the front right side of the chassis. A radar sensor is embedded in the front section of the unit. This sensor detects vehicles and objects in front of the vehicle. The radar sensor can detect up to 64 objects ahead of a vehicle.
