Hyundai Ioniq (AE): Emergency Call System / Emergency Call (eCall) Antenna. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Emergency Call System / Emergency Call (eCall) Antenna. Components and components location

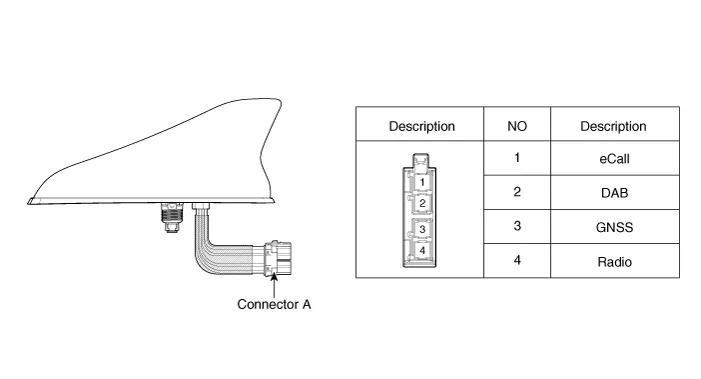

Components
RADIO+GNSS+eCall

RADIO+GNSS+DAB+eCall

    Removal1.Disconnect the negative (-) battery terminal.2.separate the overhead console (A) from the roof trim after loosening the mounting screws.3.Remove the overhead console (A) after disconnecting the connector (A)Installation1.

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the roof trim assembly.(Refer to Body - "Roof Trim Assembly")3.Disconnect the roof antenna cable and connectors (A).

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures

    Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Warning Indicator. Repair procedures

    RemovalWarning Indicator1.Disconnect the negative (-) battery terminal.2.Remove the mirror (A).InstallationWarning Indicator1.Install the outside mirror.2.Connect the negative (-) battery terminal.Inspection1.Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
