Hyundai Ioniq (AE): Emergency Call System / Emergency Call (eCall) Button. Schematic diagrams

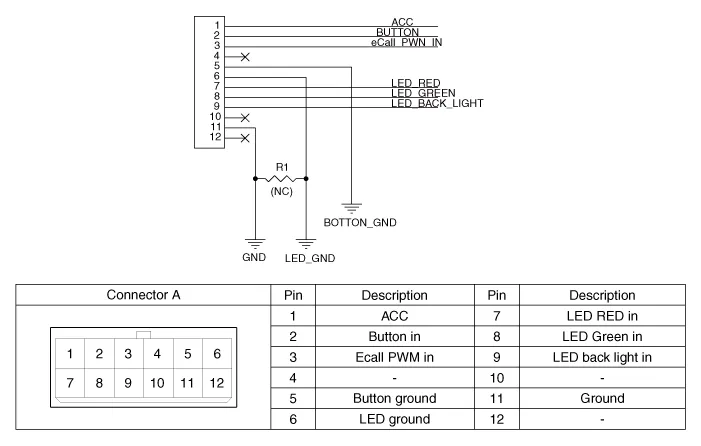

| SCHEMATIC DIAGRAM |
Removal You must make sure turn RED LED ON if you do any of the following.– Replace the eCall unit.– Replace the Back-up Battery (BUB).
Removal1.Disconnect the negative (-) battery terminal.2.separate the overhead console (A) from the roof trim after loosening the mounting screws.3.Remove the overhead console (A) after disconnecting the connector (A)Installation1.
