Hyundai Ioniq (AE): Engine and Transaxle Assembly / Engine Mounting. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Engine and Transaxle Assembly / Engine Mounting. Components and components location

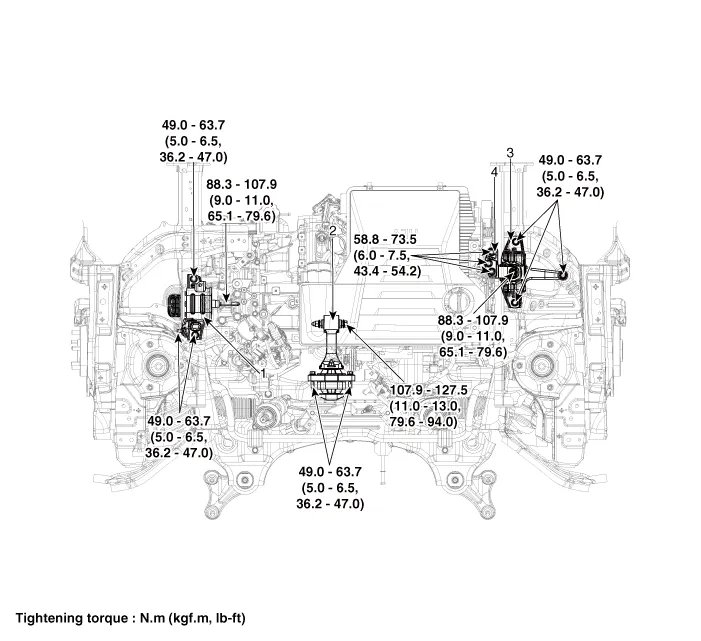

Components

1. Transaxle mounting bracket
2. Roll rod bracket
3. Engine mounting bracket
4. Engine mounting support bracket

    Removal and installation1.Remove the engine room under cover (A). Tightening torque : 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)2.

    Removal and InstallationRoll Rod Bracket1.Remove the roll rod bracket (A). Tightening torque Bolt (B) :107.9 - 127.5 N.m (11.0 - 13.
