Hyundai Ioniq (AE): Engine and Transaxle Assembly / Engine Room Under Cover. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Engine and Transaxle Assembly / Engine Room Under Cover. Repair procedures

Removal and installation
1.

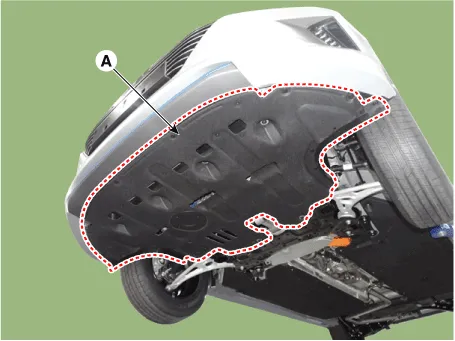

Remove the engine room under cover (A).
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

2.
Install in the reverse order of removal.
