Hyundai Ioniq (AE): Front Door / Front Door Latch. Components and components location

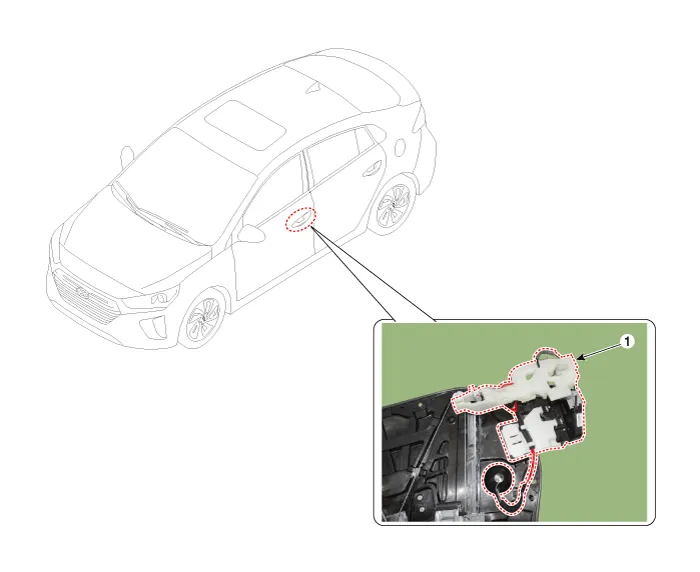

| Component Location |
| 1. Front door latch |
Replacement[Front door side weatherstrip]1.Loosen the front door checker (B) mounting bolt. Tightening torque : 18.6 - 28.4 N.m (1.7 - 2.
Replacement1.Remove the front door module.(Refer to Front Door - "Front Door Module")2.Remove the front door inside handle cage (A).3.Remove the front door latch assembly (A) by pulling it in the direction of the arrow.
