Hyundai Ioniq (AE): Front Door / Front Door Latch. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Latch. Repair procedures

Replacement
1.
Remove the front door module.
(Refer to Front Door - "Front Door Module")
2.

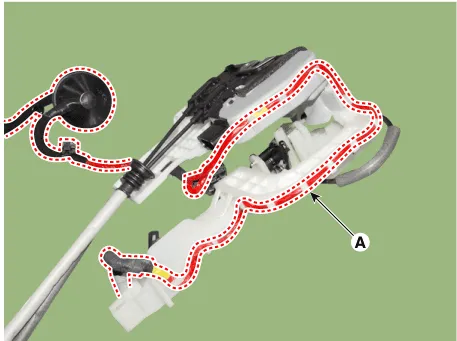

Remove the front door inside handle cage (A).

3.

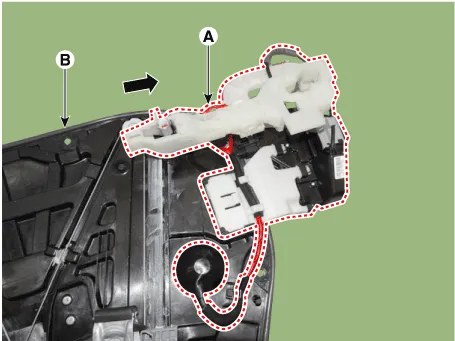

Remove the front door latch assembly (A) by pulling it in the direction of the arrow.

4.

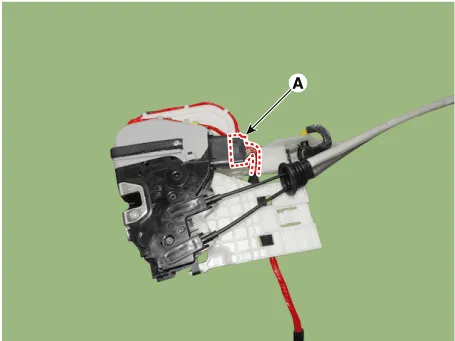

Disconnect the front door latch connector (A).

5.

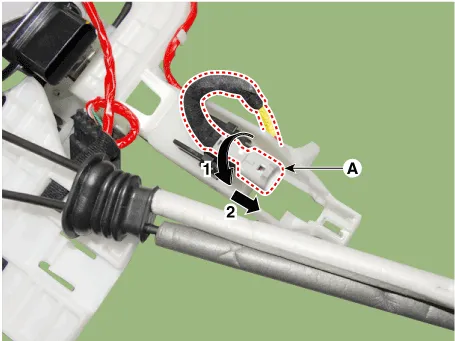

To remove the front door outside handle base connector (A), widen both sides of the wiring fastener and then push back the front door outside handle base connector.

6.

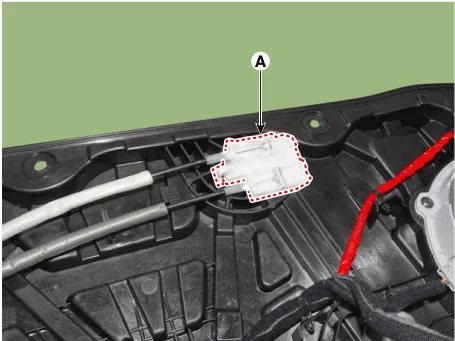

Remove the front door outside handle connector wiring harness (A).

7.

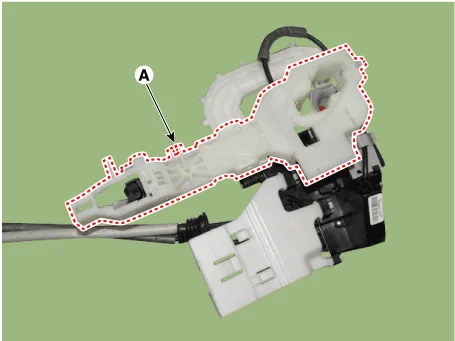

Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

8.

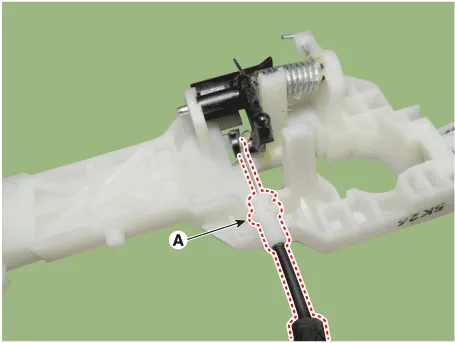

Remove the front door outside handle cable (A).

9.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front door latch
