Hyundai Ioniq (AE): Lift and Support Points / General information
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / General Information / Lift and Support Points / General information
| Lift and Support Points |

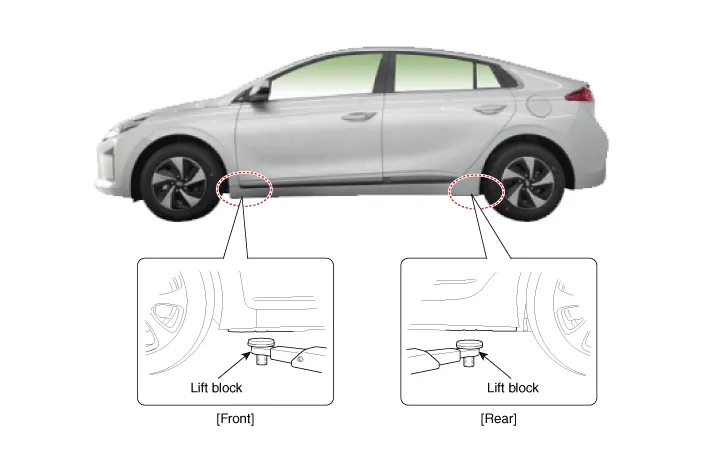

| 1. | Place the lift blocks under the support points as shown in the illustration. |
| 2. | Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported. |
| 3. | Raise the hoist to full height to inspect the lift points for secure support.
|
