Hyundai Ioniq (AE): Engine Control System / Heated Oxygen Sensor (HO2S). Schematic diagrams

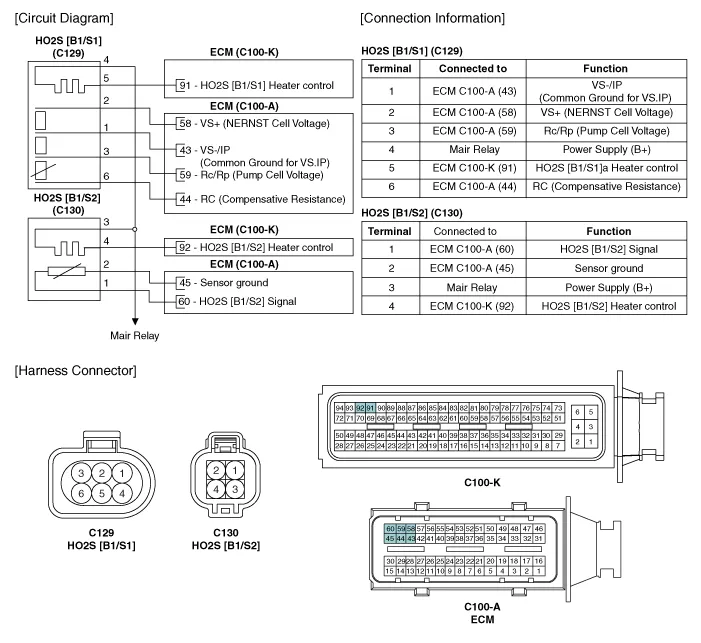

| Circuit Diagram |
SpecificationHO2S [Bank 1 / Sensor 1] Item Specification Heater Resistance (Ω)2.4 - 4.0 [20°C (68°F)]HO2S [Bank 1 / Sensor 2] (Binary Type) A/F Ratio (λ) Output Voltage (V) RICH0.
Inspection1.Turn the ignition switch OFF.2.Disconnect the HO2S connector.3.Measure resistance between the HO2S terminals 2 and 5 [B1/S1].4.Measure resistance between the HO2S terminals 3 and 4 [B1/S2].
