Hyundai Ioniq (AE): Hood / Hood Latch. Components and components location

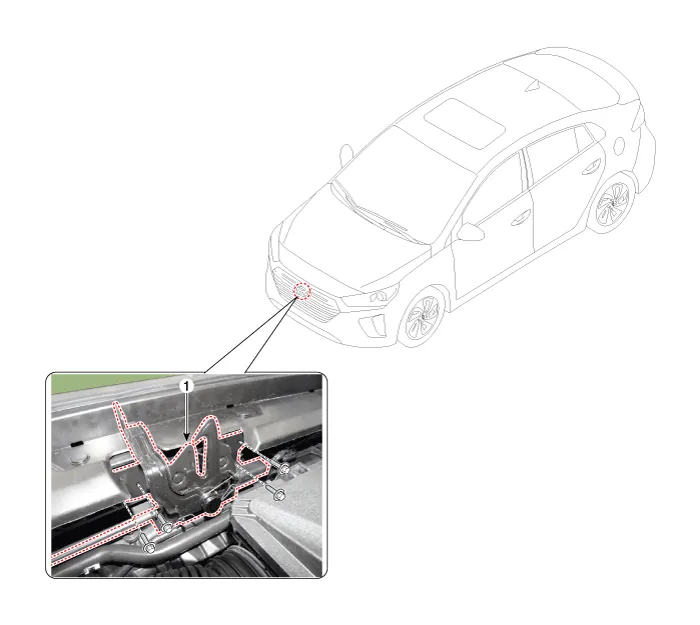

| Component Location |
| 1. Hood latch assembly |
Replacement1.Using a socket (B), remove the hood release handle (A).2.To install, reverse the removal procedure. • Make sure the hood latch cable is connected properly.
Replacement1.Disconnect the connector (A), then remove the wiring mounting clips.2.Disconnect the hood latch release cable (A). 3.Loosen the mounting bolts and remove the hood latch assembly (A).
