| Replacement |

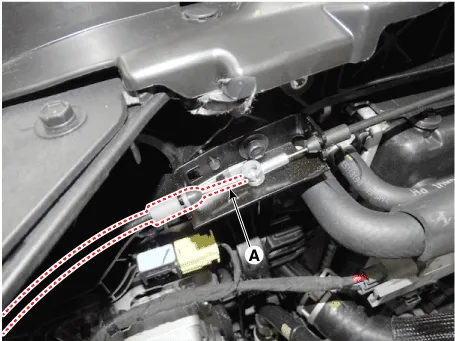

| 1. | Disconnect the connector (A), then remove the wiring mounting clips.
|

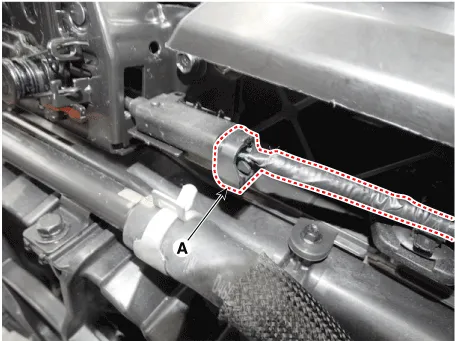

| 2. | Disconnect the hood latch release cable (A).
|

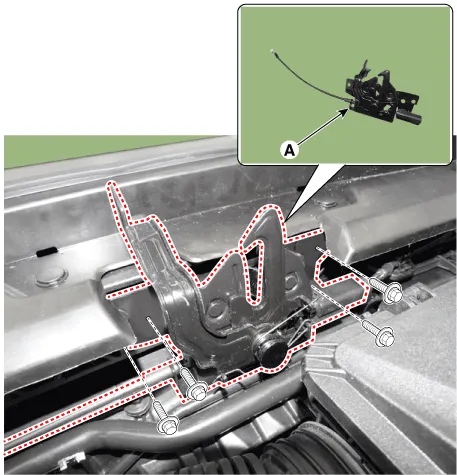

| 3. | Loosen the mounting bolts and remove the hood latch assembly (A).
|
| 4. | To install, reverse the removal procedure.
|
