Hyundai Ioniq (AE): Hood / Hood Latch Release Handle. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle. Repair procedures

Replacement
1.

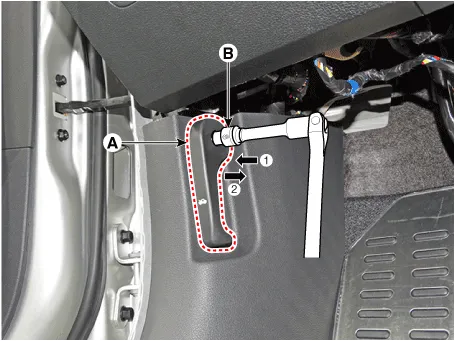

Using a socket (B), remove the hood release handle (A).

2.
To install, reverse the removal procedure.

•
Make sure the hood latch cable is connected properly.
•
Make sure the hood locks / unlocks and opens / closes properly.

    Component Location1. Hood latch release handle

    Component Location1. Hood latch assembly
