Hyundai Ioniq (AE): Timing System / Idler. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Timing System / Idler. Repair procedures

Removal and Installation
1.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
2.

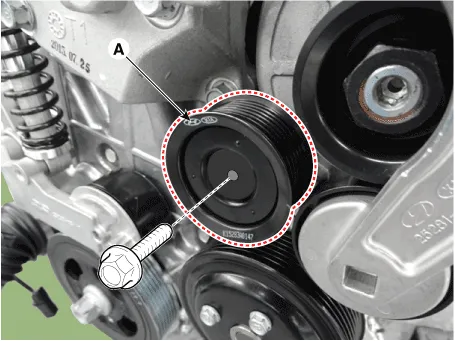

Remove the idler (A).
Tightening torque :
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

3.
Install in the reverse order of removal.
Inspection
Check the idler for excessive oil leakage, abnormal rotation or vibration. Replace if necessary.
