Hyundai Ioniq (AE): Timing System / Drive Belt Tensioner. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Timing System / Drive Belt Tensioner. Components and components location

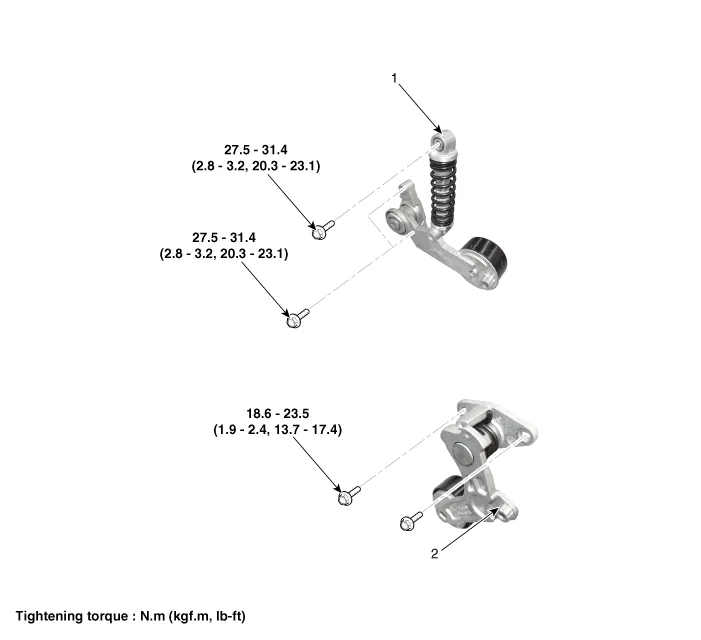

Components

1. Hydraulic tensioner
2. Mechanical tensioner

    Removal and Installation1.Remove the drive belt.(Refer to Timing System - "Drive Belt")2.Remove the idler (A). Tightening torque : 39.2 - 49.

    Removal and Installation1.Remove the drive belt.(Refer to Timing System - "Drive Belt")2.Remove the mechanical tensioner (A). Tightening torque : 18.
