Hyundai Ioniq (AE): Mirror / Inside Rear View Mirror. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror. Repair procedures

Replacement

Put on gloves to prevent hand injuries.
1.

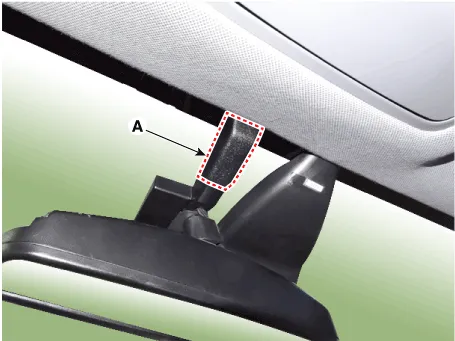

Remove the inside rear view mirror cover (A).

2.

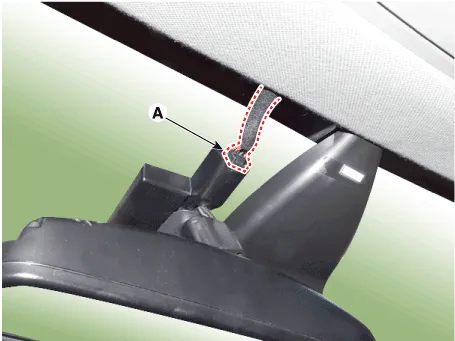

Disconnect the ECM mirror connector (A).

3.

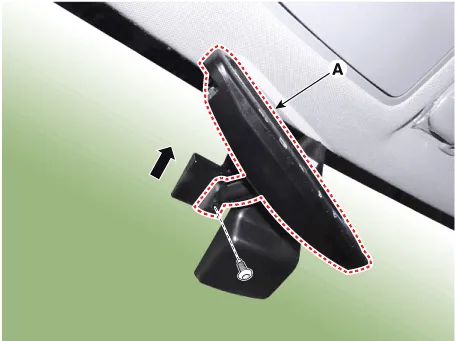

Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).

4.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Be careful not to damage the windshield glass.

    Component Location 1. Inside rear view mirror
