Hyundai Ioniq (AE): Mirror / Inside Rear View Mirror. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror. Components and components location

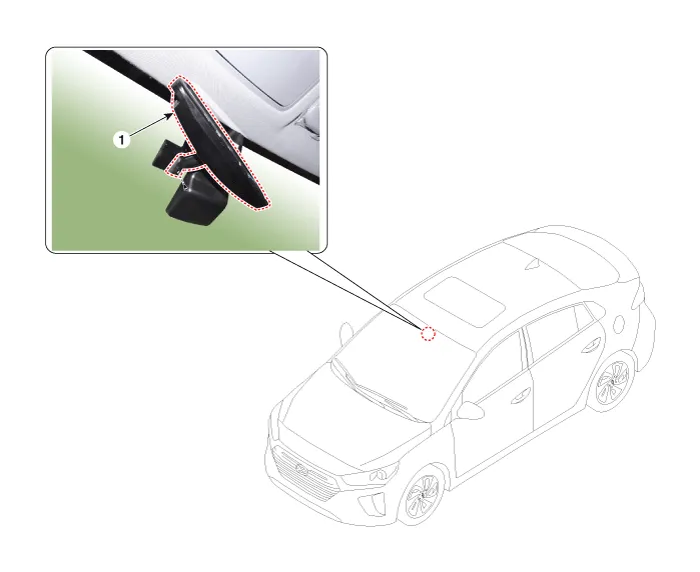

Component Location

1. Inside rear view mirror


    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Replacement    Put on gloves to prevent hand injuries.1.Remove the inside rear view mirror cover (A).2.Disconnect the ECM mirror connector (A).
