Hyundai Ioniq (AE): Intake and Exhaust System / Muffler. Components and components location

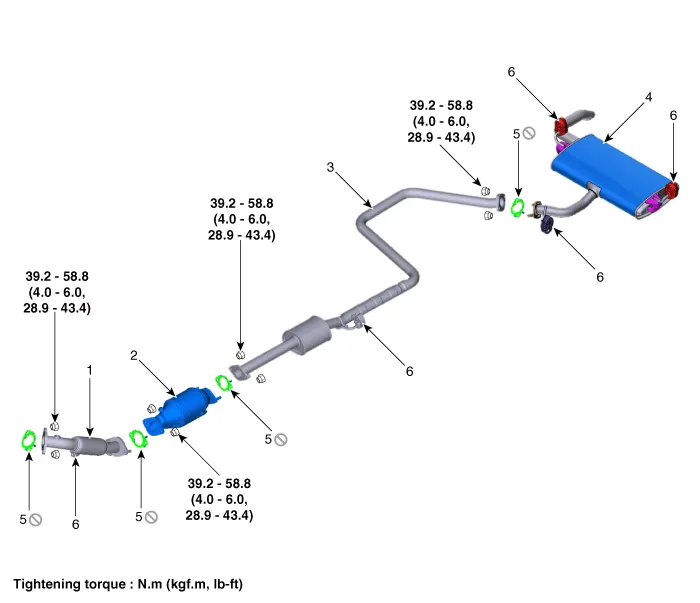

| Components |
| 1. Front muffler 2. GPF 3. Center muffler | 4. Rear muffler 5. Gasket 6. Hanger |
Removal and installation1.Disconnect the battery negative terminal.2.Remove the engine room under cover.(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")3.
Removal and InstallationFront Muffler1.Disconnect the battery negative terminal.2.Disconnect the oxygen sensor connector (A).3.Remove the heat protector (A).
