Hyundai Ioniq (AE): Lubrication System / Oil Level Gauge & Pipe. Repair procedures
| Removal and Installation |

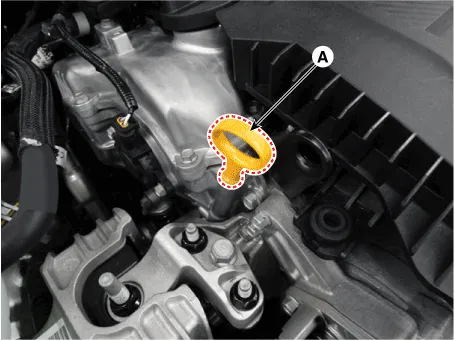

| 1. | Remove the oil level gauge (A).
|
| 2. | Install in the reverse order of removal. |
Removal1.Disconnect the battery negative terminal.2.Remove the engine room under cover.(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")3.
