Hyundai Ioniq (AE): Power Windows / Power Window Motor. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Power Windows / Power Window Motor. Components and components location

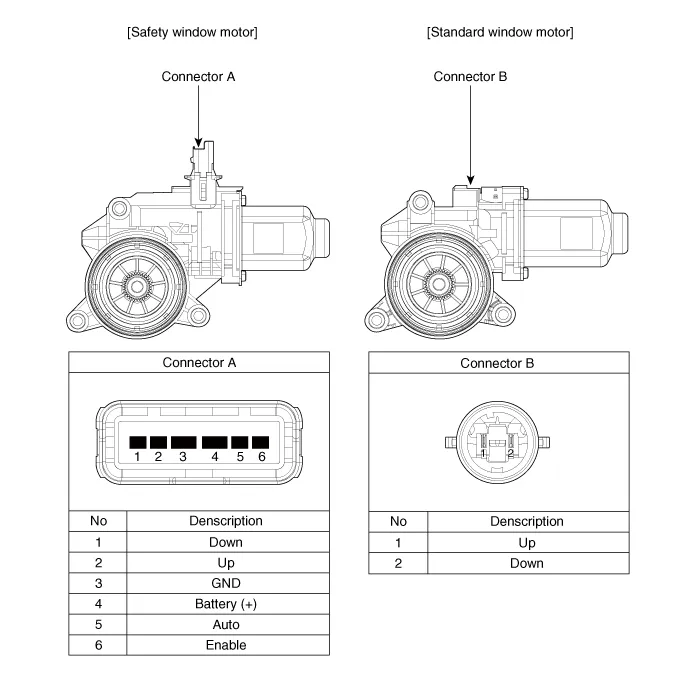

Components

    Function of Safety Power WindowWhen driver door power window auto-up switch is operated, safety function is activated.1.Safety function conditionWhen detect the force of 100N (using the 10N/mm spring) during the window rising, window is reversed.

    Circuit Diagram

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Repair procedures

    Replacement1.Remove the battery (-) terminal.2.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")3.Remove the heater hose (A) and AEWP hose (B).4.Disconnect the lock pin to remove the heater hose pump connector (A).
