Hyundai Ioniq (AE): Rear Seat / Rear Back Armrest. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Seat / Rear Back Armrest. Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat back assembly [LH].
(Refer to Rear Seat - "Rear Seat Assembly")
2.

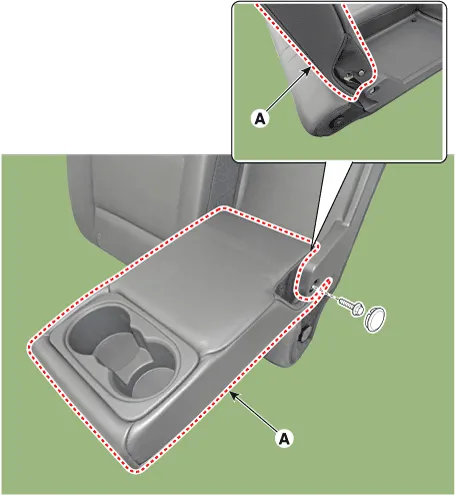

Separate the rear back armrest (A) after removing the cap and then loosening the bolt.

3.
To install, reverse the removal procedure.

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
