Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

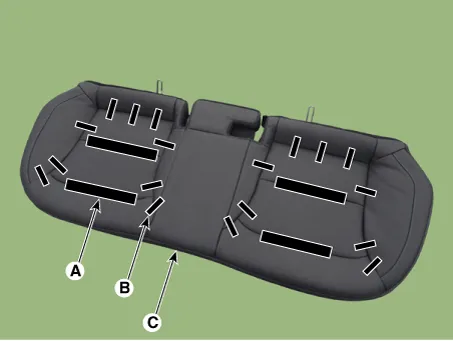

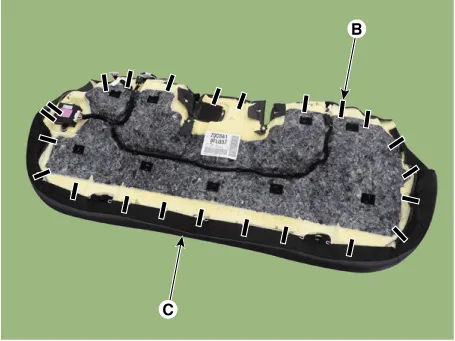

After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).
[Front side]

[Rear side]

3.
To install, reverse the removal procedure.

•
Make sure that the connectors are connected completely.
•
Replace any damaged clips (or pin-type retainers).
•

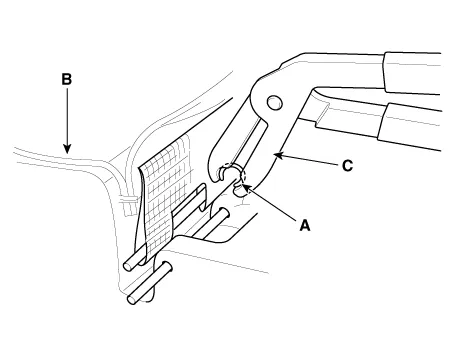

To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
•
Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
