Hyundai Ioniq (AE): Rear Door / Rear Door Belt Outside Weatherstrip. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip. Repair procedures

Replacement
1.
Pull down the rear door window glass to the lowest level by pressing the power window glass switch.
2.

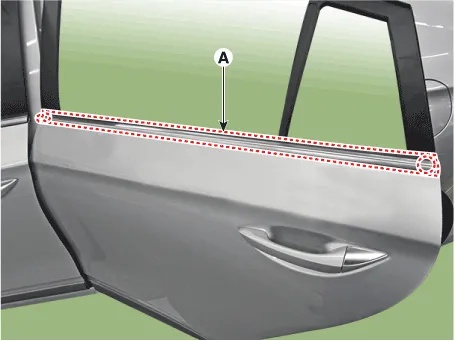

After loosening the mounting screws, remove the rear door belt outside weatherstrip (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips.

    Replacement1.Remove the rear door module.(Refer to Rear Door - "Rear Door Module")2.Remove the rear door inside handle cage (A).3.Loosen the mounting bolt and remove the rear door latch (A).

    Replacement1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")2.Remove the rear door belt inside weatherstrip (A).3.To install, reverse the removal procedure.
