Hyundai Ioniq (AE): Rear Door / Rear Door Latch. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch. Repair procedures

Replacement
1.
Remove the rear door module.
(Refer to Rear Door - "Rear Door Module")
2.

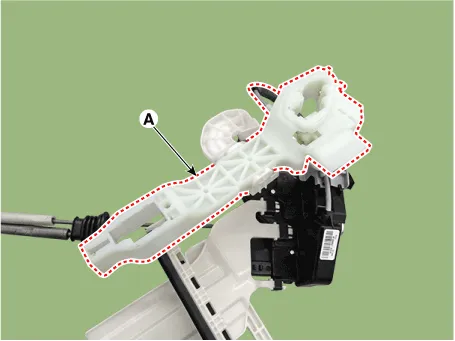

Remove the rear door inside handle cage (A).

3.

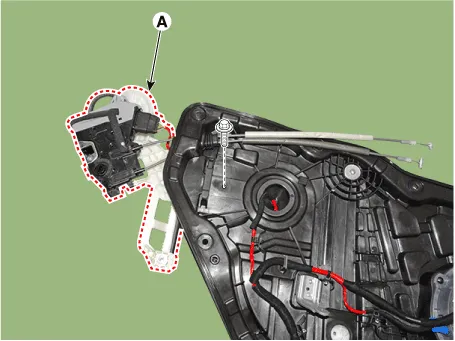

Loosen the mounting bolt and remove the rear door latch (A).

4.

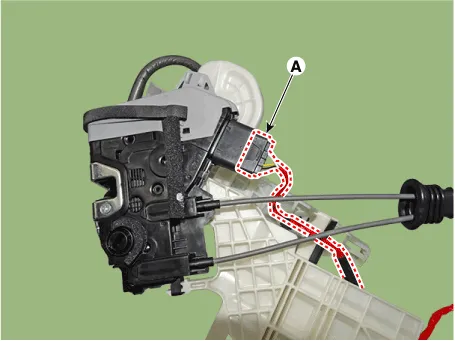

Disconnect the rear door latch connector (A).

5.

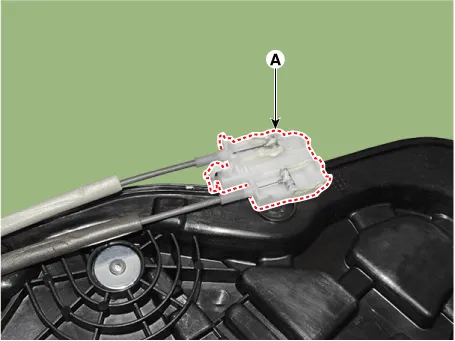

Remove the rear door outside handle base (A) by pushing in the lock pins located in the back.

6.
Remove the rear door outside handle cable (A).

7.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Rear door latch
