Hyundai Ioniq (AE): Rear Door / Rear Door Latch. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch. Components and components location

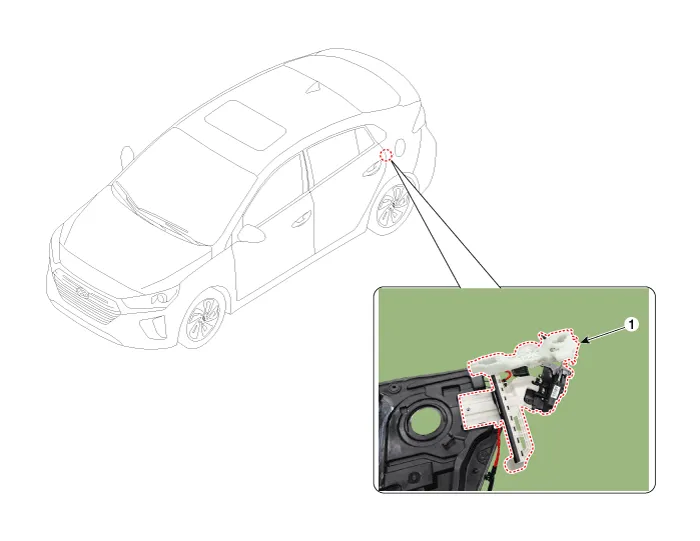

Component Location

1. Rear door latch


    Replacement1.Remove the plug hole (B).2.After loosening the mounting bolt, remove the front door lock (A). Tightening torque : 7.8 - 10.

    Replacement1.Remove the rear door module.(Refer to Rear Door - "Rear Door Module")2.Remove the rear door inside handle cage (A).3.Loosen the mounting bolt and remove the rear door latch (A).
