Hyundai Ioniq (AE): Rear Door / Rear Door Outside Handle. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle. Repair procedures

Replacement
1.

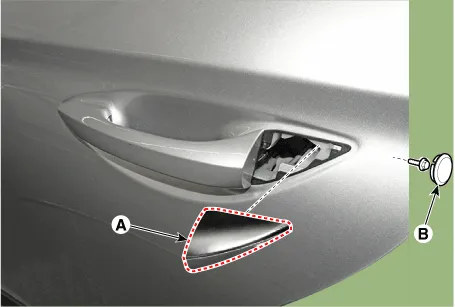

Remove the plug hole (B).
2.
After loosening the mounting bolt, remove the front door lock (A).
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

3.

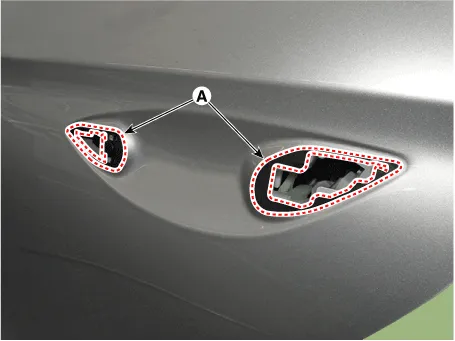

Remove the rear door outside handle (A) by pushing it in the direction of arrow.

4.
To install, reverse the removal procedure.

•
Make sure the door locks / unlocks and opens / closes properly.
•
Be sure to install the outside handle pad (A) between the outside handle and the door panel.

    Component Location 1. Rear door outside handle

    Component Location 1. Rear door latch
