Hyundai Ioniq (AE): ESP(Electronic Stability Program) System / Rear Wheel Speed Sensor. Components and components location

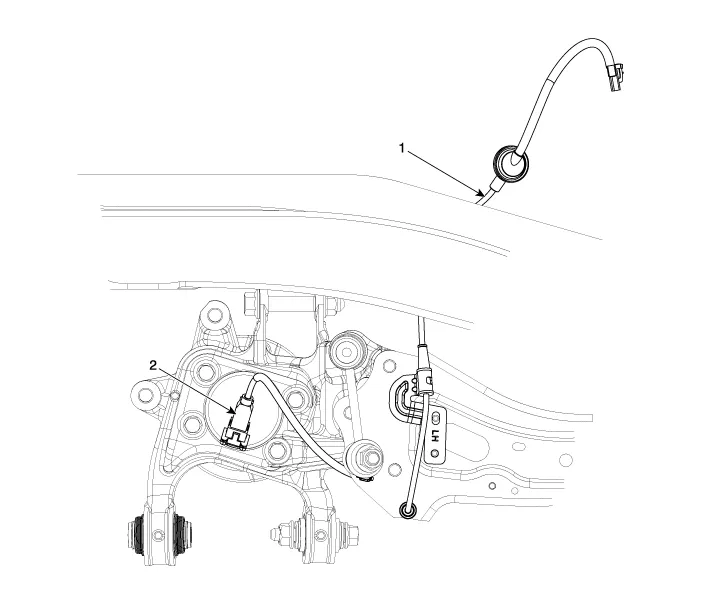

| Components |
| 1. Rear wheel speed sensor cable | 2. Rear wheel speed sensor connector |
Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub.
Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the rear hub.
