Hyundai Ioniq (AE): Clutch System / Reservoir. Components and components location
| Components |

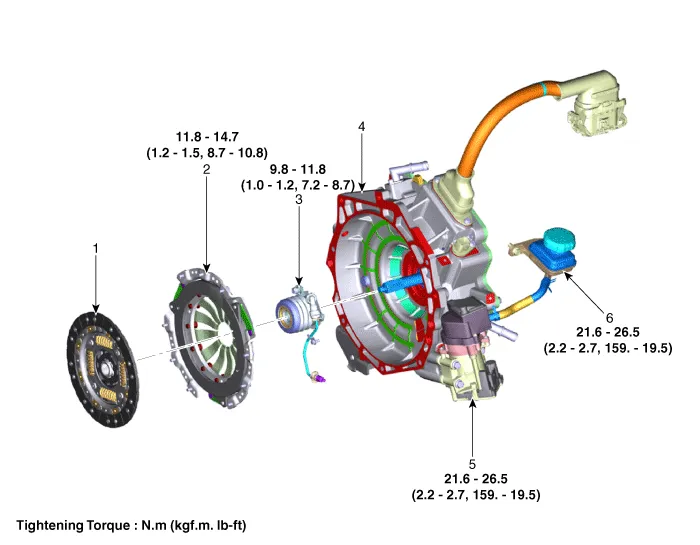

| 1. Clutch disc 2. Clutch cover 3. Concentric slave cylinder | 4. Hybrid motor assembly 5. Engine clutch actuator 6. Reservoir |
Removal1.Remove the hybrid motor assembly.(Refer to Hybrid Motor System - "Hybrid Motor Assembly")2.Remove the clutch cover assembly and clutch disc after loosening the bolts.
Removal1.Turn the ignition switch OFF and disconnect the battery (-) terminal. 2.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")3.
