Hyundai Ioniq (AE): Lighting System / Rheostat. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Lighting System / Rheostat. Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.

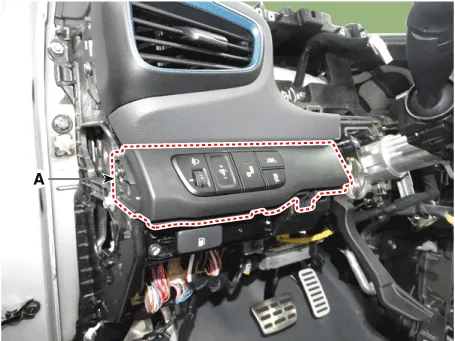

Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")

3.

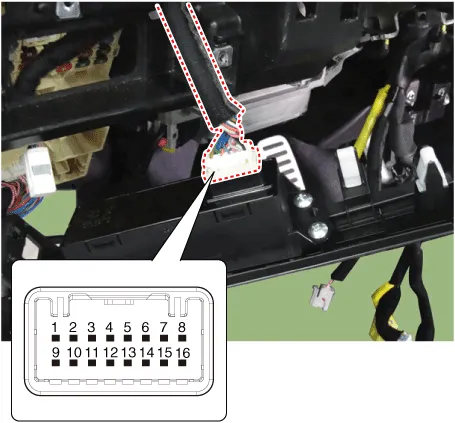

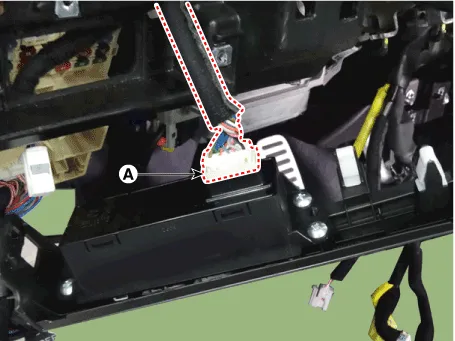

Disconnect the rheostat switch connector (A).

4.

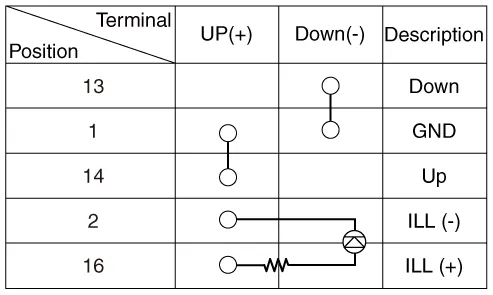

Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

    Components

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the front bumper.(Refer to Body - "Front Bumper Cover")3.Disconnect the DRL connector.4.
