Hyundai Ioniq (AE): High Voltage Battery Control System / Safety Plug. Schematic diagrams

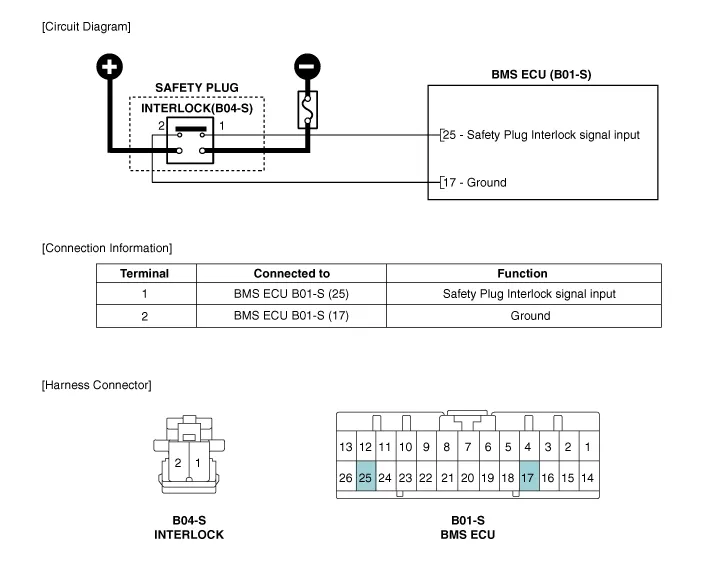

| Circuit Diagram |
Specification Item Specification Rated Voltage (V)400Rated Current (A)80Fuse Rated Current (A)125Fuse Melting TimeRated Current x 110%Min.
Removal1.Turn the ignition switch OFF and disconnect the auxiliary 12V battery negative (-) terminal.2.Remove the safety plug cover (A).3.Unfasten the hook (A) and then remove the safety plug (C) by pulling the lever (B) to the direction of arrow.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Description and operation
DescriptionThe smart cruise control system allows a driver to program the vehicle to control the speed and following distance by detecting the vehicle ahead without depressing the brake pedal and the accelerator pedal.1.Cruise speed control : The vehicle maintains the selected speed if there are not vehicles ahead.
