Hyundai Ioniq (AE): ETC (Electronic Throttle Control) System / Schematic diagrams

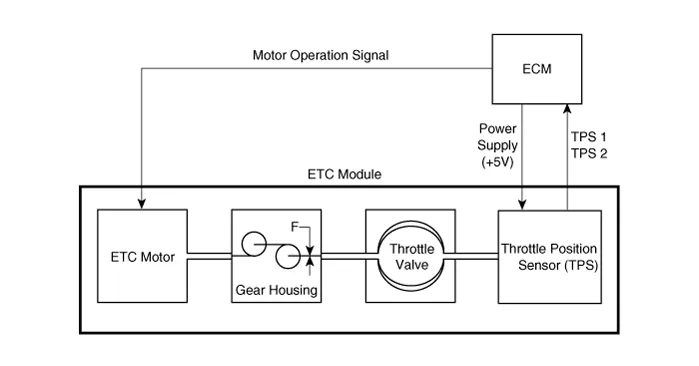

| Schematic Diagram |

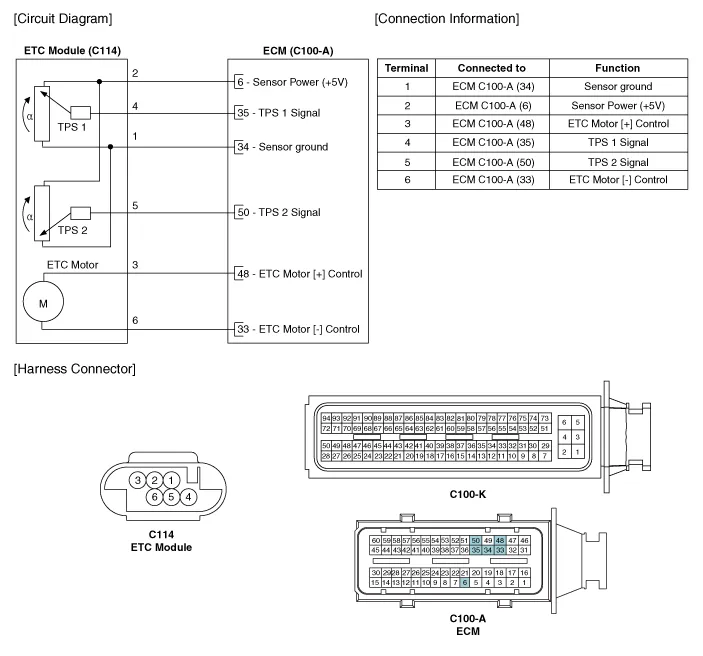

| Circuit Diagram |
Fail-Safe Mode Item Fail-Safe ETC MotorThrottle valve stuck at 7°TPSTPS 1 faultReplace it with TPS 2TPS 2 faultReplace it with TPS 1TPS 1, 2 faultThrottle Angle (°) Throttle valve stuck at 7°Duty (%)• TPS1 : 13.
InspectionThrottle Position Sensor (TPS)1.Connect the GDS on the Data Link Connector (DLC).2.Start the engine and measure the output voltage of TPS 1 and 2 at C.
