Hyundai Ioniq (AE): Input shaft speed sensor 1 / Schematic diagrams

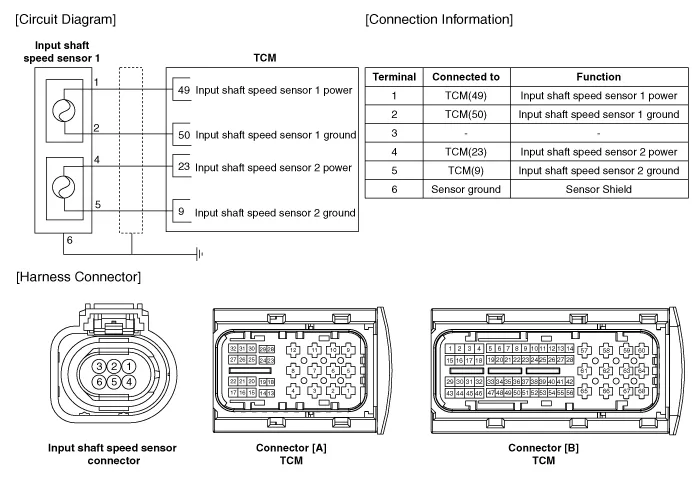

| Circuit Diagram |
Description• Components location : DCT (Dual Clutch Transmission)• Function The input shaft speed sensor is important in that it detects the input shaft RPM and sends this information to the Transmission Control Module (TCM).
Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
