Components

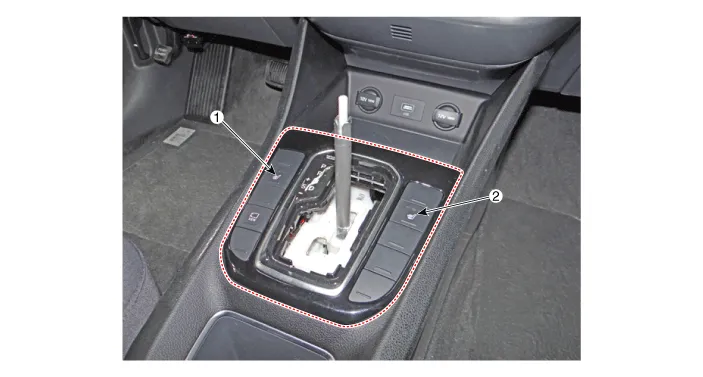

[Front Seat]

1. Driver seater heater switch
2. Passenger seater heater switch

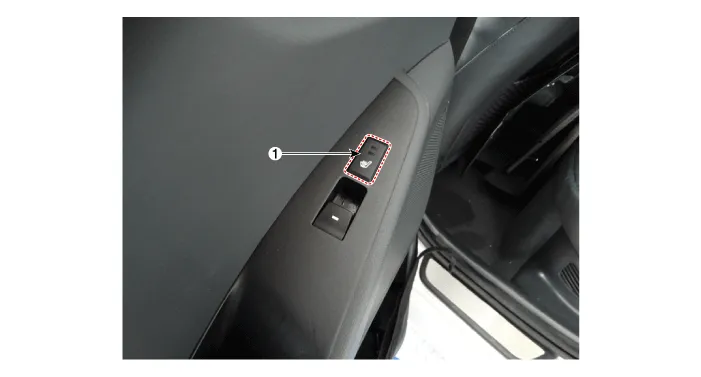

[Rear Seat]

1. Seat heater switch

    InspectionFront Seat Heater1.Check for continuity and measure the resistance between terminals No 3 and No 6. Standard value Driver / Assists (cushion + back) : 1.

    Circuit Diagram[Front Seat Heater Switch (Driver)][Front Seat Heater Switch (Passenger)][Rear Seat]
