Hyundai Ioniq (AE): Seat Electrical / Seat Heater Switch. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Seat Electrical / Seat Heater Switch. Repair procedures

Removal
[Front Seat]
1.
Disconnect the negative (-) battery terminal.
2.
Remove the floor console upper cover.
(Refer to Body - "Floor Console Assembly")
3.

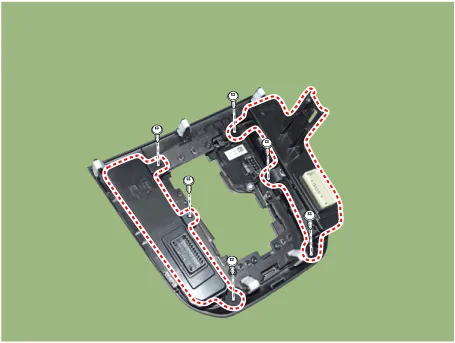

Remove the seat heater switch after loosening mounting screws.

[Rear Seat]
1.
Disconnect the negative (-) battery terminal.
2.

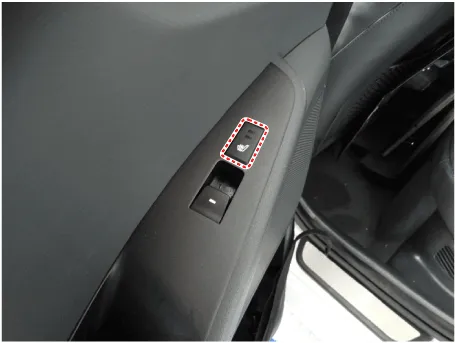

Remove the rear door window switch.
(Refer to Power Windows - "Power Window Switch")

Installation
[Front Seat Heater Switch]
1.
Install the seat heater switch.
2.
Install the floor consol upper cover.
3.
Connect the negative (-) battery terminal.
[Rear Seat Heater Switch]
1.
Install the rear door window switch.
2.
Connect the negative (-) battery terminal.

    Circuit Diagram[Front Seat Heater Switch (Driver)][Front Seat Heater Switch (Passenger)][Rear Seat]

    Component Location[Front Ventilation Seat]1. Ventilation seat unit (Assist seat only)2. Ventilation seat blower
