Components

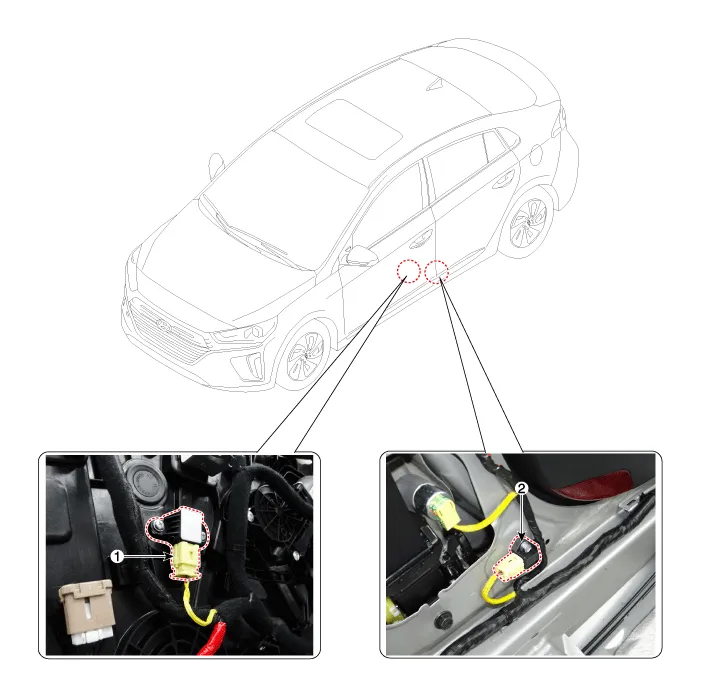

1. Front Pressure Side Impact Sensor (P-SIS)

2. Front Gravity Side Impact Sensor (G-SIS)

❮Side Impact Sensor (SIS). Description and operation

Description• Side Impact Sensors (SIS), each installed on the center part of the right and left front door modules and the right and left center pillars, detects side impact during collision.

Side Impact Sensor (SIS). Repair procedures❯

Removal[Pressure Side Impact Sensor] • Removal of the airbag must be performed according to the precautions/procedures described previously.
