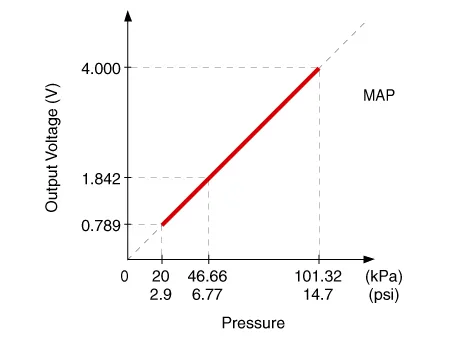

Hyundai Ioniq (AE): Manifold Absolute Pressure Sensor (MAPS) / Specifications
| Specification |
|
Pressure
[kPa (kgf/cm², psi)] |
Output Voltage (V)
|
| 20.0 (0.20, 2.9) | 0.79 |
| 46.7 (0.47, 6.77) | 1.84 |
| 101.3 (1.03, 14.7) | 4.0 |
DescriptionManifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and is installed on the surge tank. It senses absolute pressure of the surge tank and transfers the analog signal proportional to the pressure to the ECM.
