Hyundai Ioniq (AE): Sunroof / Sunroof Sunshade. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Sunroof / Sunroof Sunshade. Repair procedures

Replacement
1.
Remove the sunroof assembly.
(Refer to Sunroof - "Sunroof Assembly")
2.

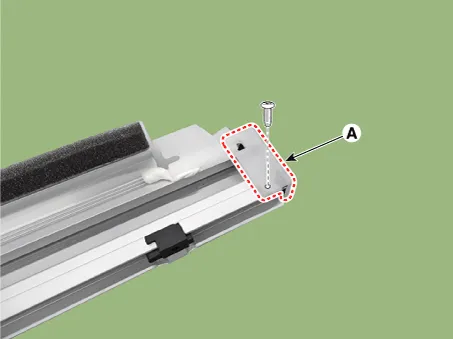

After loosening the mounting screws, remove the drip rail assembly (A).

3.

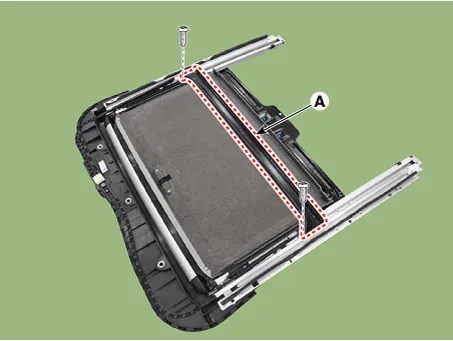

After loosening the mounting screws, disengage the rear drip (A).

4.

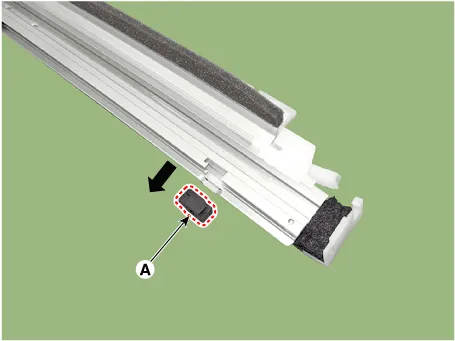

Remove the stopper (A) by pushing it in the direction of the arrow.

5.

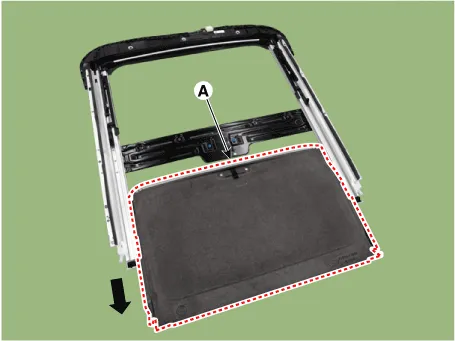

Remove the sunroof sunshade (A) by pushing it backward.

6.
To install, reverse the removal procedure.

    Replacement    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Replacement1.Remove the sunroof assembly.(Refer to Sunroof - "Sunroof Assembly") 2.Remove the sunroof sunshade.(Refer to Sunroof - "Sunroof Sunshade") 3.
