Hyundai Ioniq (AE): Sun Roof / Sunroof Switch. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Sun Roof / Sunroof Switch. Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.

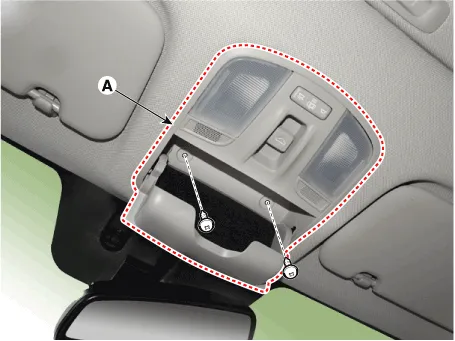

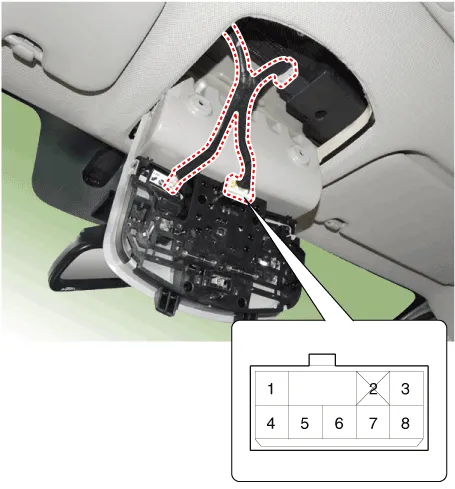

Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

3.

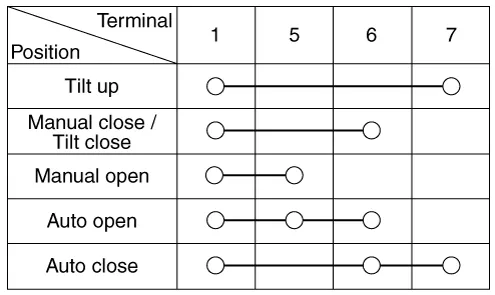

Check for continuity between the terminals.

    Circuit Diagram

    Inspection 1.Disconnect the negative (-) battery terminal.2.Remove the roof trim.(Refer to Body - "Roof Trim")3.Disconnect the sunroof motor (A) connector.
