Hyundai Ioniq (AE): Tailgate / Tailgate Assembly. Components and components location

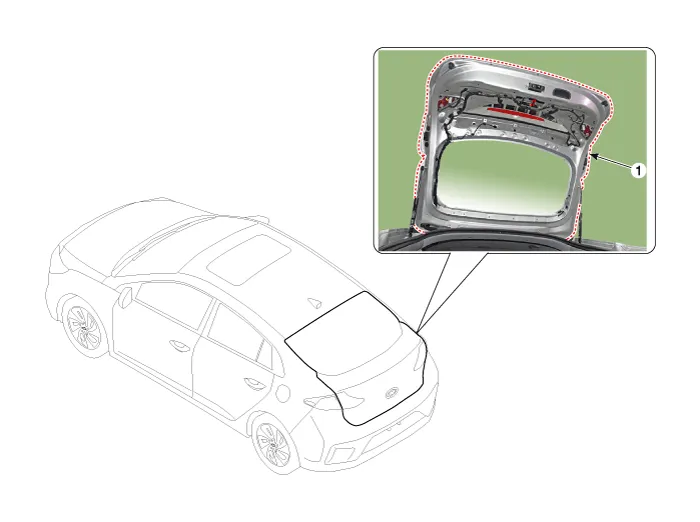

| Component Location |
| 1. Tailgate assembly |
Adjustment1.Place the car on a flat surface and check whether the body and trunk lid are well-aligned. 2.After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up and down or from side to side.
Replacement • Wear gloves to protect hands from injury. • When removing and installing the tailgate, an assistant is needed.
