Adjustment
1.

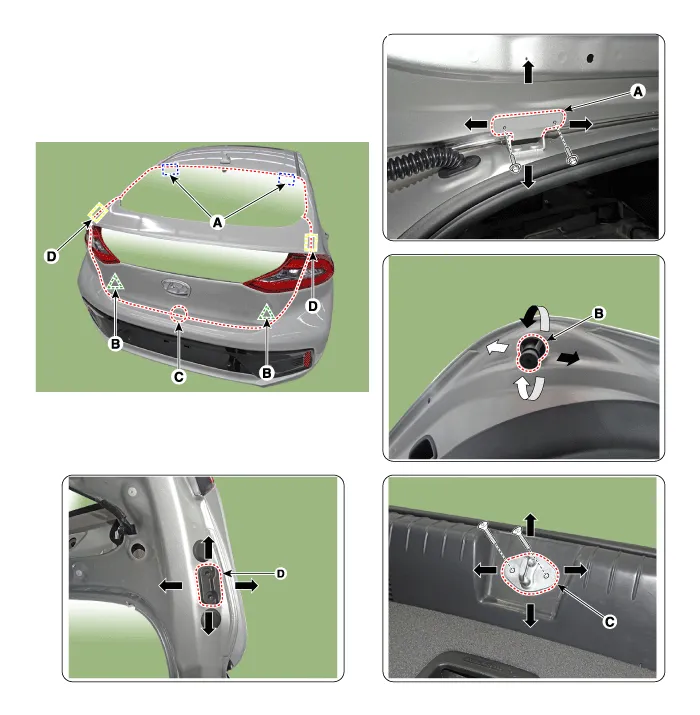

Place the car on a flat surface and check whether the body and trunk lid are well-aligned.
2.
After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up and down or from side to side.
3.
Adjust the gap between the tailgate and body by turning the tailgate overslam bumpers (B).
4.
After loosening the tailgate striker (C) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts.
5.
Make sure the tailgate opens or closes properly.
6.
Make sure the guide bumper (D) overlap each other is good.

    Component Location1. Tailgate assembly

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation

    DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Repair procedures

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the tailgate lid trim.(Refer to Body - "TailGate Lid Trim")3.Disconnect the Rear view camera connector (A).4.Remove the Rear view camera assembly after loosening the mounting screws.Installation1.
