Hyundai Ioniq (AE): Tailgate / Tailgate Lift. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Tailgate / Tailgate Lift. Repair procedures

Replacement

•
Take care to not let the tailgate fall on you as the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open.
1.

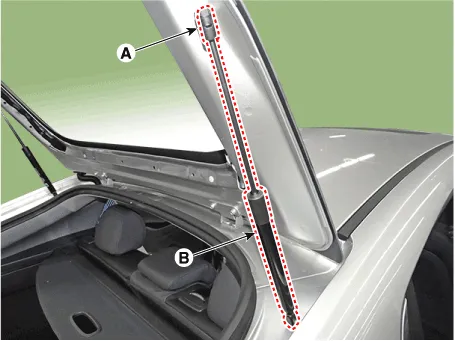

Using a screwdriver, lift up slightly the socket clips (A) of both ends on the lifter (B), and then remove the lifter from the bracket.

2.
Push the socket of the lifter into the bracket for installation.

•
Make sure the tailgate locks and opens properly and locks securely.

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Replacement1.Remove the tailgate weatherstrip (A).    â€¢ Do not apply sealant to the body.2.To install, reverse the removal procedure.
