Hyundai Ioniq (AE): Tailgate / Tailgate Weatherstrip. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Tailgate / Tailgate Weatherstrip. Repair procedures

Replacement
1.

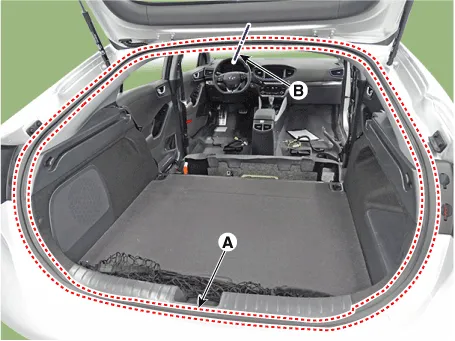

Remove the tailgate weatherstrip (A).

•
Do not apply sealant to the body.

2.
To install, reverse the removal procedure.

•
When installing the tailgate weatherstrip, check the center-marking line (B).

    Replacement    â€¢ Take care to not let the tailgate fall on you as the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open.
